Eight (8) valve soda fountain system with built in ice bin (holds approx. 200+lb. of ice). Bin has built-in cold plate.  Very efficient cooling easily maintains product quality during high demand. We have set this system up to dispense eight (8) flavors. Buyer has choice of flavor selection. All eight (8) valves operate correctly and are capable of dispensing post-mix Bag-in-Box product.  Equipped with lever activated ice dispenser. The system will come with push-button or lever valves depending on our inventory. One of the valves can have a secondary lever for soda water or plain water only (you must specify this feature when you place your order).  Attractive marquee.  Stainless steel construction.

Includes Manitowoc Remote Ice Maker. This style ice maker keeps the heat out of your store or facility. Ice maker comes to you fully charged. We will send you a video with serial number showing it producing ice the day we ship it to you. You will need an HVAC Technician to install it.

Makes approx.  860 lbs per day
30" W x 24.5D x 26.5H
Air Cooled

Max Fuse or Circuit Breaker Size: 20 Amps
Minimum Circuit Amps: 9.2 Amps
Power Consumption (kWh per 100 Lbs of Ice): 5.2 kWh
Voltage / Hz / Phase: 230v / 60 / 1

Very simple hook-up. The lines have been pre-assembled & labeled.  ALL of the fittings have been professionally clamped for easy re-installation.

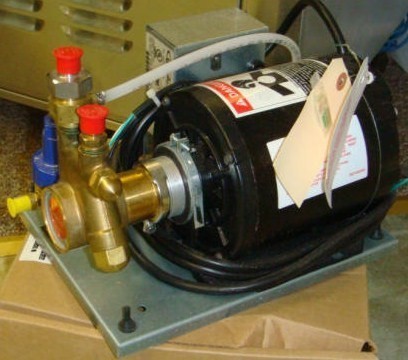

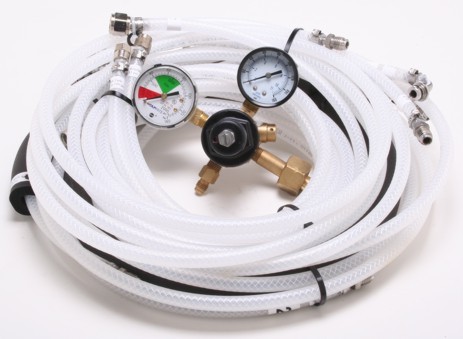

ALSO INCLUDED: A Complete set of Co2 regulators (Primary and Secondary gauges), high pressure hosing,  carbonator, (8) syrup pumps with mounting board, BIB hose & BIB connectors.

We offer FREE  phone installation support and a pdf manual with a start up video for easy installation.

What you need to supply: Electricity, CO2, Syrup, Ice, & Main Water Hook-Up. (We will help you locate these items)

This is a remanufactured system. All the tubing is new. We pressure test, performance test, and bring each component back to manufacturer's specs. The components were previously used so they may have minor dings and scratches due to normal use.

FEATURES

• Eight Flavor Ice & Beverage Dispenser

• Completely Pre-Assembled Ready To Install

• Built-in Ice Bin / Cold Plate

• Fast Flow Dispensing Valves

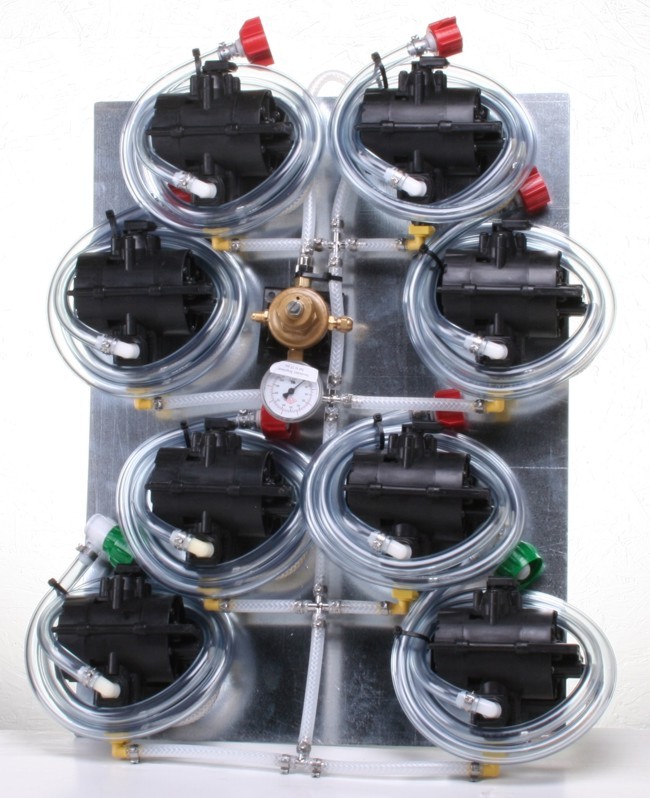

• (8) Syrup Pumps w / Mounting Board

• Carbonator

• Installation Manual & Start Up Video

• Measures 30" D x 30" W x 38" H

• Complete Set Of CO₂ Regulators

• See Shipping Rates Located In Shopping Cart
