Seltzer Draft Arm (Flow Control) Soda Fountain System with Remote Chiller

Add to Cart$2,665.00 + Shipping
Item #: L1000FC

What You Need to Supply:

  • Water supply
  • CO2 (carbon dioxide) gas
  • Electricity

(We can help you locate syrup & CO2 for your area)

Seltzer Draft Arm (Flow Control) Soda Fountain System with Remote Chiller
Seltzer Draft Arm with Flow Control Seltzer Draft Arm with Flow Control (Dimensions) Countertop Install Demonstration Carbonator Tubing and Primary Regulator Remote Chiller (front) Remote Chiller (angle) Remote Chiller (inside) CO2 Tank
NSF Certified UL Certified

Features:

  • NEW Seltzer Draft Arm w/ Flow Control
    • Adjustable Flow Control
    • Polished Chrome-plated Brass
    • All Stainless Steel Contact with Water
    • Dimensions: 18.75" Tall (including handle)
    • Mounting Shank Diameter: 1.250"
    • Mounting Shank Hole in Countertop: 1.3125" (1 5/16")
  • NEW Remote Chiller
    Dimensions: 10" W x 20" D x 23.5" H
  • NEW Carbonator
  • NEW Primary CO2 Regulator
  • NEW 5 lb CO2 Tank
  • Completely Pre-Assembled Ready To Install
  • Water Source Tubing & Connectors Not Included
  • See Shipping Rates in Shopping Cart

Complete seltzer draft arm soda fountain system with flow control and remote chiller. This complete system is designed for home or office use. The draft arm stands 18.75 inches tall, is made of brass with a brilliant chrome-plated finish and stainless steel piping for no corrosion with carbonic acids. A 4.5-inch brass shank enables mounting on the thinnest to thickest surfaces. Includes black plastic faucet knob. Compatible for recirculation chilling. Dispenses seltzer only.

This system uses a remote chiller for refrigerated cooling. This type of heat transfer cools a water bath that the soda water lines run through, eliminating the need for a cold plate or ice.

Very simple hook-up. The lines have been pre-assembled & labeled. ALL of the fittings have been professionally clamped for easy installation.

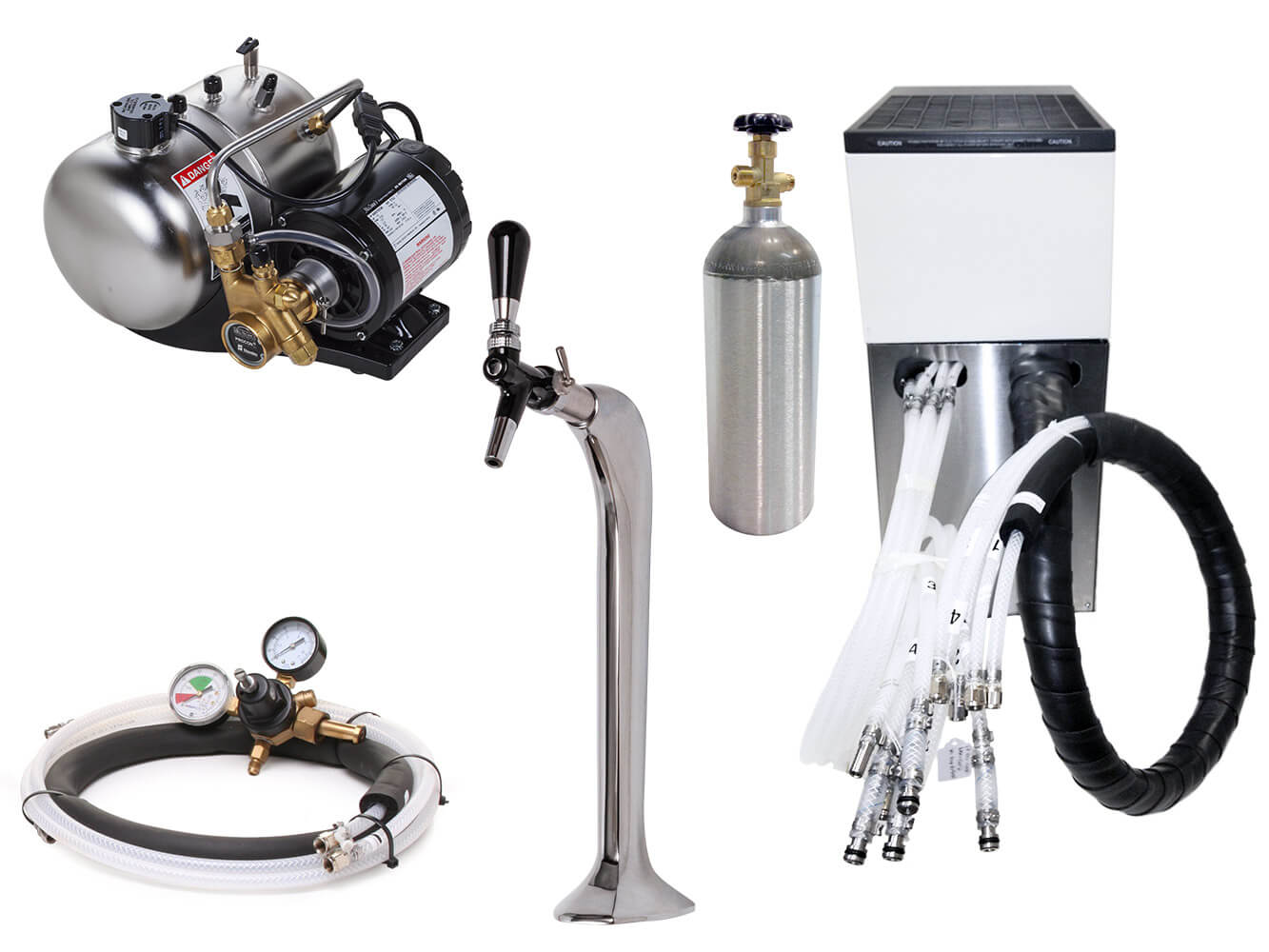

Also included: Primary CO2 regulator, high pressure hosing, carbonator, remote chiller, and CO2 tank.

Brix Kit

A brix kit is used to achieve exact syrup-to-seltzer (carbonated) or syrup-to-plain water (non-carbonated) ratios. A brix kit includes a syrup separator and a ratio cup. The process of brixing a soda valve takes only a few minutes per valve and will give you a standard flavor result.
Add a brix kit to your system order today!
If you purchase a complete system and a brix kit: We will supply the appropriate syrup separator for your valve type or soda gun. Not applicable to seltzer-only systems.

With your purchase of this system, you will receive an Installation Guide in the form of a Digital Download PDF that includes a link to the Start-up Procedures video for your system. You will receive our PDF document on how to purchase your Bag-in-Box syrup and how to locate CO2 gas suppliers. We also offer FREE technical support to our customers via telephone and email.

        REMOTE CHILLER SPECIFICATIONS
        DIMENSIONS
        Width: 10.375" (264 mm)
        Depth: 19.688" (500 mm)
        Height: 23.5" (597 mm)

        WEIGHT
        Shipping: 108 lbs (49 kg)
        With water: 145 lbs (66 kg)

        ELECTRICAL
        115VAC/60Hz, 7AMPs

        FITTINGS
        Stainless steel inlet and outlet labeled 3/8" barb

        COMPRESSOR 1/4 hp

        MOTORS
        Agitator: 15 W
        Condenser Fan: 9 W
