4-Flavor Compact Counter Electric Soda System with Cold Carbonation

Style:
$4,464.00 + Shipping
Item #: CX4000

What You Need to Supply:

  • Water supply
  • Bag-in-Box (BIB) syrup
  • CO2 (carbon dioxide) gas
  • Electricity

(We can help you locate syrup & CO2 for your area)

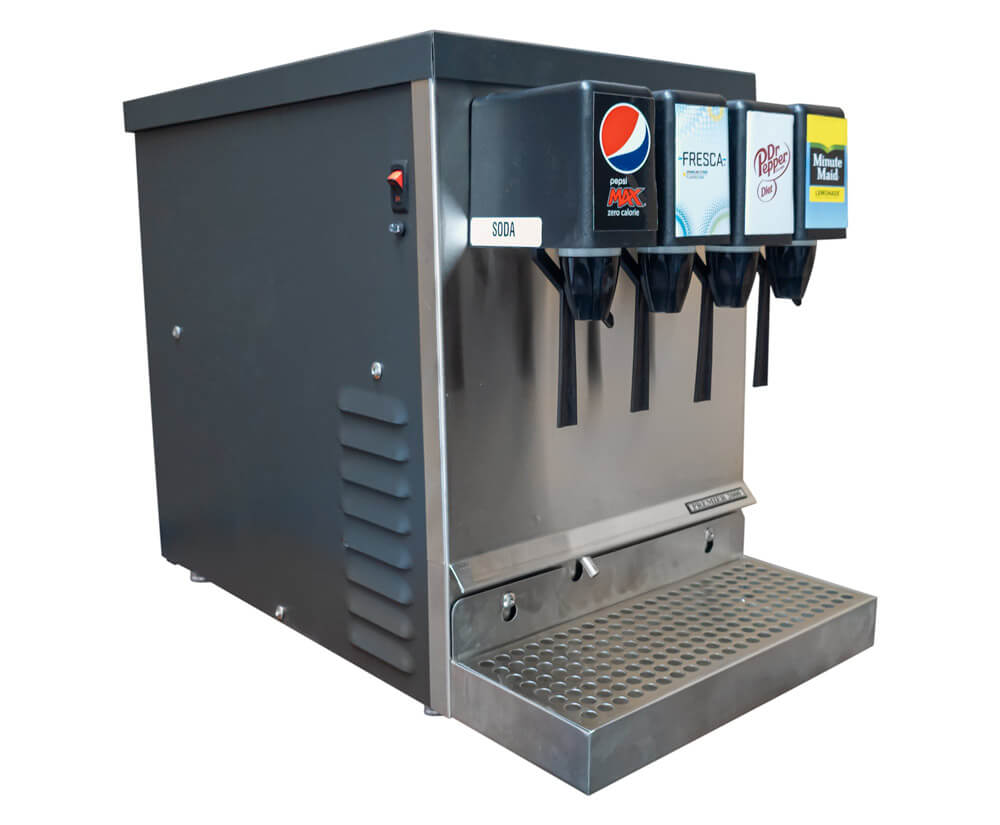

4-Flavor Compact Counter Electric Soda Fountain System with Cold Carbonation (angle)

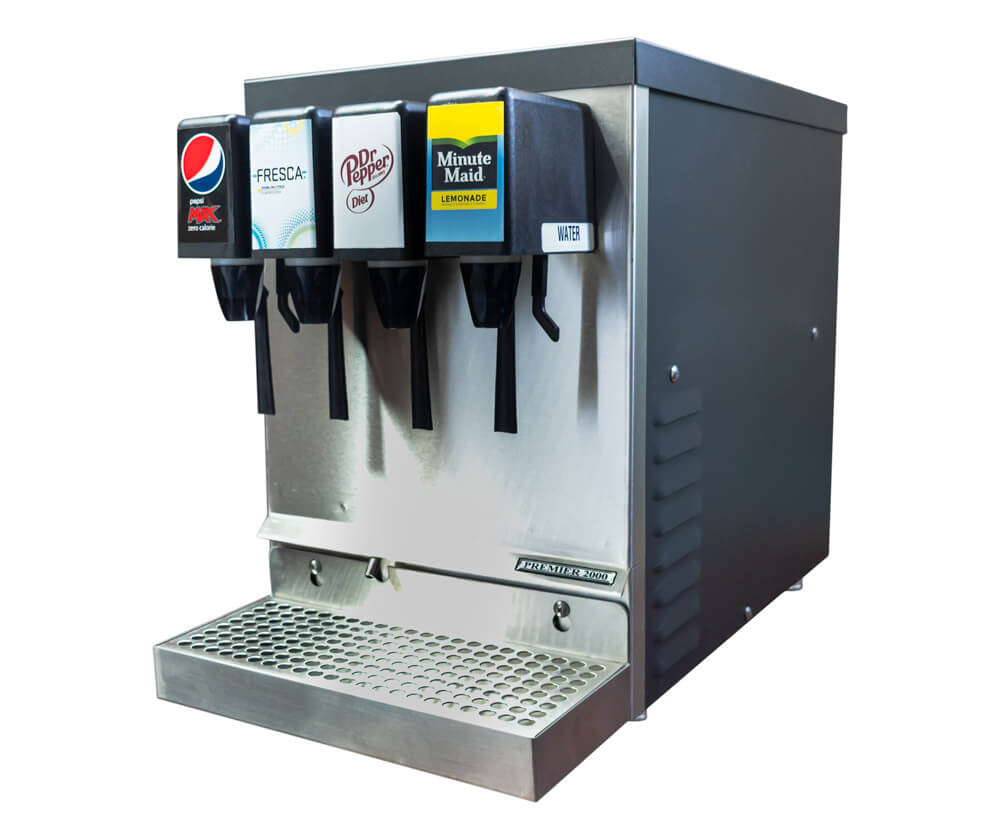

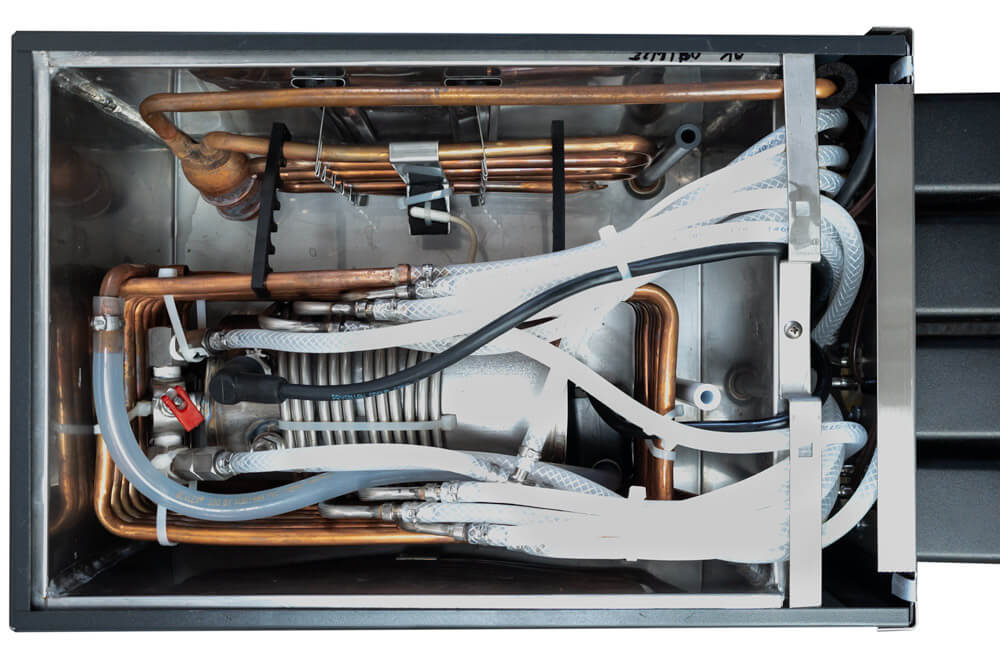

4-Flavor Compact Counter Electric Soda Fountain System with Cold Carbonation (front) 4-Flavor Compact Counter Electric Soda Fountain System with Cold Carbonation (angle) 4-Flavor Compact Counter Electric Soda Fountain System with Cold Carbonation (inside) 4-Flavor Compact Counter Electric Soda Fountain System with Cold Carbonation - Stainless Steel Option Tubing and Primary Regulator Four (4) Syrup Pumps w/ Secondary Regulator CO2 Tank (5 lb)
NSF Certified UL Certified

Features:

  • NEW 4-Flavor Counter Electric Dispenser with Cold Carbonation and NEW Dispensing Valves
    Dimensions: 12" W x 22" D x 17" H
  • Water Bath Cooling System - NO ICE NEEDED
  • Built-in Carbonator
  • NEW Four (4) Syrup Pumps and Mounting Bracket
  • NEW Complete Set of CO2 Regulators
  • NEW 5 lb CO2 Tank
  • Completely Pre-Assembled Ready To Install
  • Water Source Tubing & Connectors Not Included
  • See Shipping Rates in Shopping Cart

Complete four (4) flavor compact counter electric soda fountain system. This system features built-in refrigerated cooling and cold carbonation for the highest product quality. This type of heat transfer cools a water bath that the soda water and syrup lines run through, eliminating the need for a cold plate or ice.

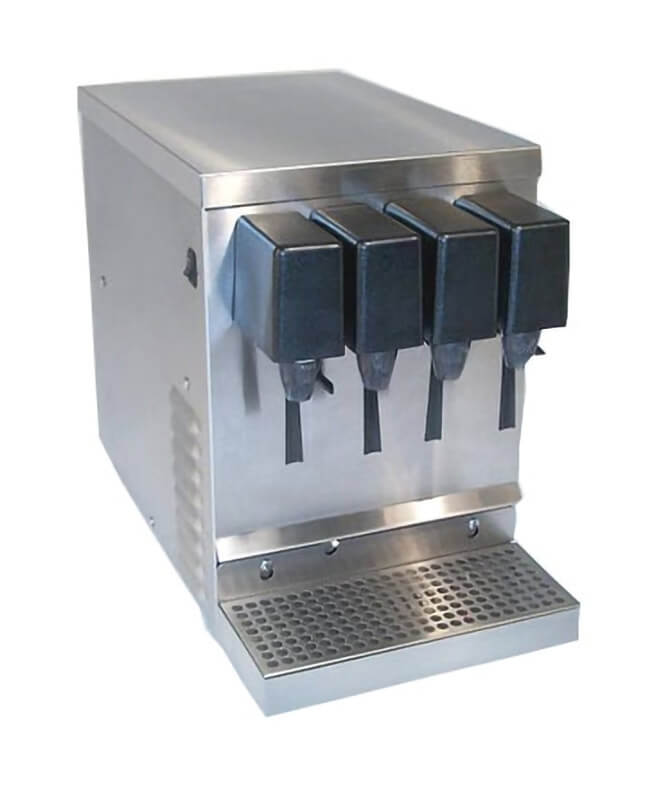

For an extra $120, you can get this dispenser in all stainless steel (see example photo). Select from the "Style" drop-down above the "Add to Cart" button.

System has been set up to dispense four (4) flavors; any combination of carbonated and non-carbonated beverages. All four (4) valves are capable of dispensing post-mix bag-in-box product. System will come with lever valves. Valves will have secondary levers for carbonated or plain water based on the flavors you choose (one lever for seltzer if all flavors are carbonated—or—one lever for seltzer and one lever for plain water if at least one flavor is non-carbonated).

We will set up the system to accommodate your choice of post-mix bag-in-box flavors at no additional cost. Very simple hook-up. The lines have been pre-assembled & labeled. ALL of the fittings have been professionally clamped for easy installation.

Also included: Four (4) syrup pumps and mounting bracket with BIB hosing and connectors, primary & secondary CO2 regulators, high pressure hosing, and CO2 tank.

Brix Kit

A brix kit is used to achieve exact syrup-to-seltzer (carbonated) or syrup-to-plain water (non-carbonated) ratios. A brix kit includes a syrup separator and a ratio cup. The process of brixing a soda valve takes only a few minutes per valve and will give you a standard flavor result.
⇒ Add a brix kit to your system order today!
⇛ If you purchase a complete system and a brix kit: We will supply the appropriate syrup separator for your valve type or soda gun. Not applicable to seltzer-only systems.

With your purchase of this system, you will receive an Installation Guide in the form of a Digital Download PDF that includes a link to the Start-up Procedures video for your system. You will receive our PDF document on how to purchase your Bag-in-Box syrup and how to locate CO2 gas suppliers. We also offer FREE technical support to our customers via telephone and email.
