Seltzer Draft Arm (Cylinder) Soda Fountain System w/ Remote Chiller

Add to Cart$2,562.00 + Shipping
Item #: L1000c

What You Need to Supply:

  • Water supply
  • CO2 (carbon dioxide) gas
  • Electricity

(We can help you locate syrup & CO2 for your area)

Seltzer Draft Arm Soda Fountain System
Seltzer Draft Arm (Cylinder) Seltzer Draft Arm (Cylinder - gasket and hardware) Seltzer Draft Arm (Cylinder) (dimensions) Carbonator Tubing and Primary Regulator Stainless Needle Valve (side) Remote Chiller (front) Remote Chiller (angle) Remote Chiller (inside) CO2 Tank
NSF Certified UL Certified

Features:

  • NEW Seltzer Draft Arm (Cylinder)
    • Dimensions: 15" H (including handle)
      12" H (without handle)
      3" Diameter Column
      9" Nozzle Clearance
    • Polished Stainless Steel
    • All Stainless Steel Contact with Water
    • Insulated
    • Mounting Flange Diameter: 4.5"
    • Countertop Hole for Tubing: 1"
  • NEW Remote Chiller
    Dimensions: 10" W x 20" D x 23.5" H
  • NEW Carbonator
  • NEW Primary CO2 Regulator
  • NEW 5 lb CO2 Tank
  • NEW Stainless Steel Needle Valve for Seltzer Flow Control
  • Completely Pre-Assembled Ready To Install
  • Water Source Tubing & Connectors Not Included
  • See Shipping Rates in Shopping Cart

Complete seltzer draft arm soda fountain system with "cylinder" style draft arm and remote chiller. This complete system is designed for home or office use. The 3" diameter cylindrical stainless draft arm is compact in size, stands 15 inches tall, and blends in a variety of settings without eating up valuable counter space. The dispenser is insulated to prevent warming during slow serving periods. Dispenses seltzer only.

This system uses a remote chiller for refrigerated cooling. This type of heat transfer cools a water bath that the soda water lines run through, eliminating the need for a cold plate or ice.

Very simple hook-up. The lines have been pre-assembled & labeled. ALL of the fittings have been professionally clamped for easy installation.

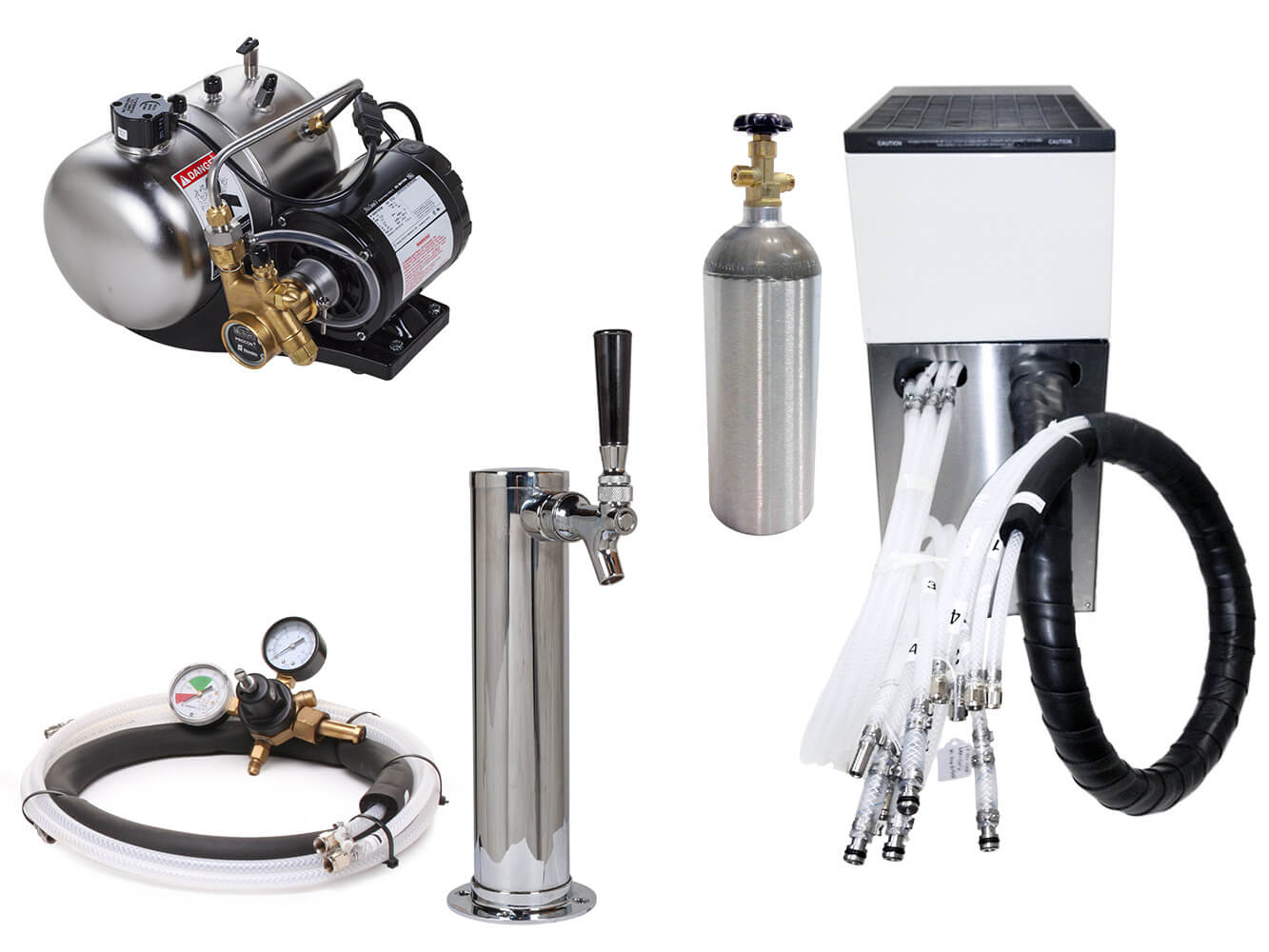

Also included: Primary CO2 regulator, high pressure hosing, carbonator, stainless needle valve, remote chiller, and CO2 tank.

Brix Kit

A brix kit is used to achieve exact syrup-to-seltzer (carbonated) or syrup-to-plain water (non-carbonated) ratios. A brix kit includes a syrup separator and a ratio cup. The process of brixing a soda valve takes only a few minutes per valve and will give you a standard flavor result.
⇒ Add a brix kit to your system order today!
⇛ If you purchase a complete system and a brix kit: We will supply the appropriate syrup separator for your valve type or soda gun. Not applicable to seltzer-only systems.

With your purchase of this system, you will receive an Installation Guide in the form of a Digital Download PDF that includes a link to the Start-up Procedures video for your system. You will receive our PDF document on how to purchase your Bag-in-Box syrup and how to locate CO2 gas suppliers. We also offer FREE technical support to our customers via telephone and email.

        REMOTE CHILLER SPECIFICATIONS
        DIMENSIONS
        Width: 10.375" (264 mm)
        Depth: 19.688" (500 mm)
        Height: 23.5" (597 mm)

        WEIGHT
        Shipping: 108 lbs (49 kg)
        With water: 145 lbs (66 kg)

        ELECTRICAL
        115VAC/60Hz, 7AMPs

        FITTINGS
        Stainless steel inlet and outlet labeled 3/8" barb

        COMPRESSOR 1/4 hp

        MOTORS
        Agitator: 15 W
        Condenser Fan: 9 W
